Description

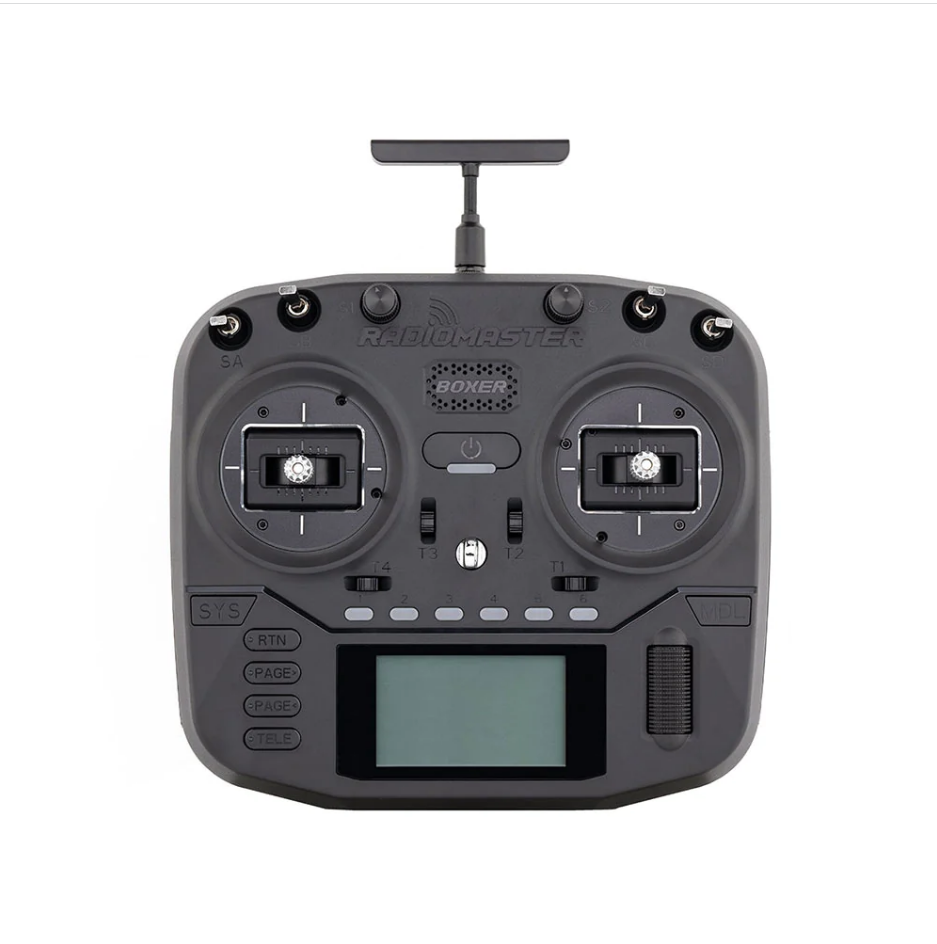

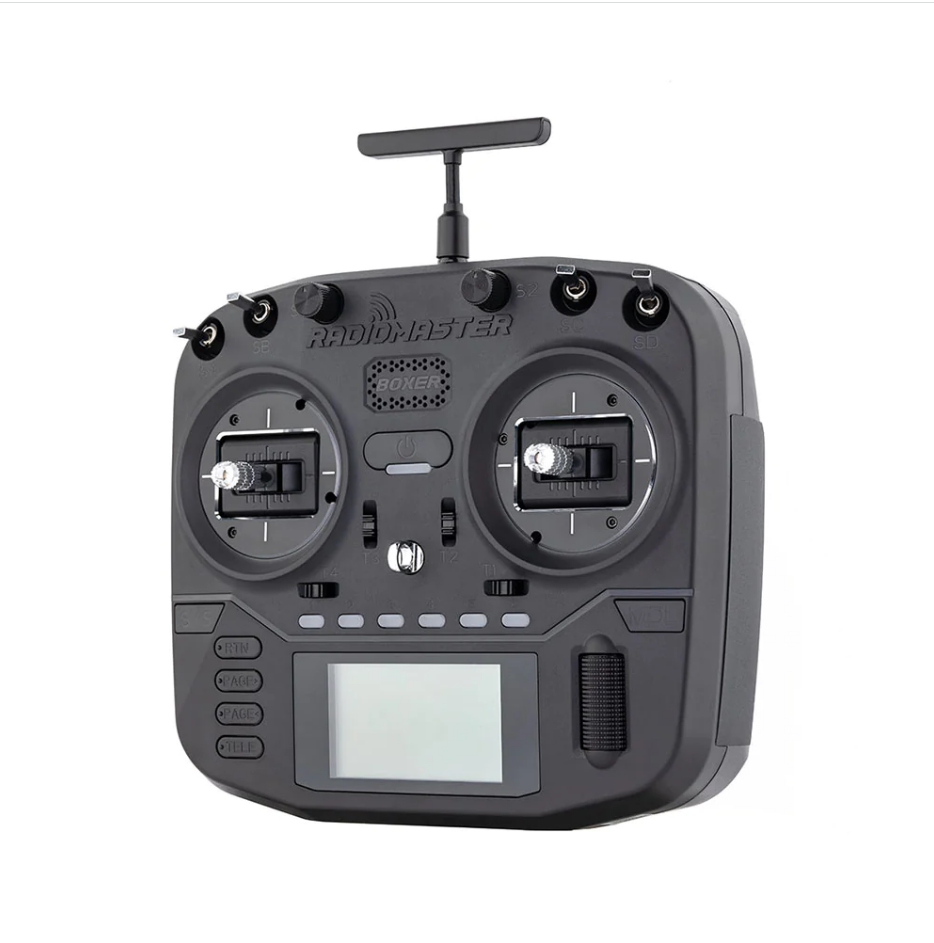

Radiomaster Boxer Radio Controller is the perfect combination of size and ergonomics making it an ideal choice for pilots on the go. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.
Features

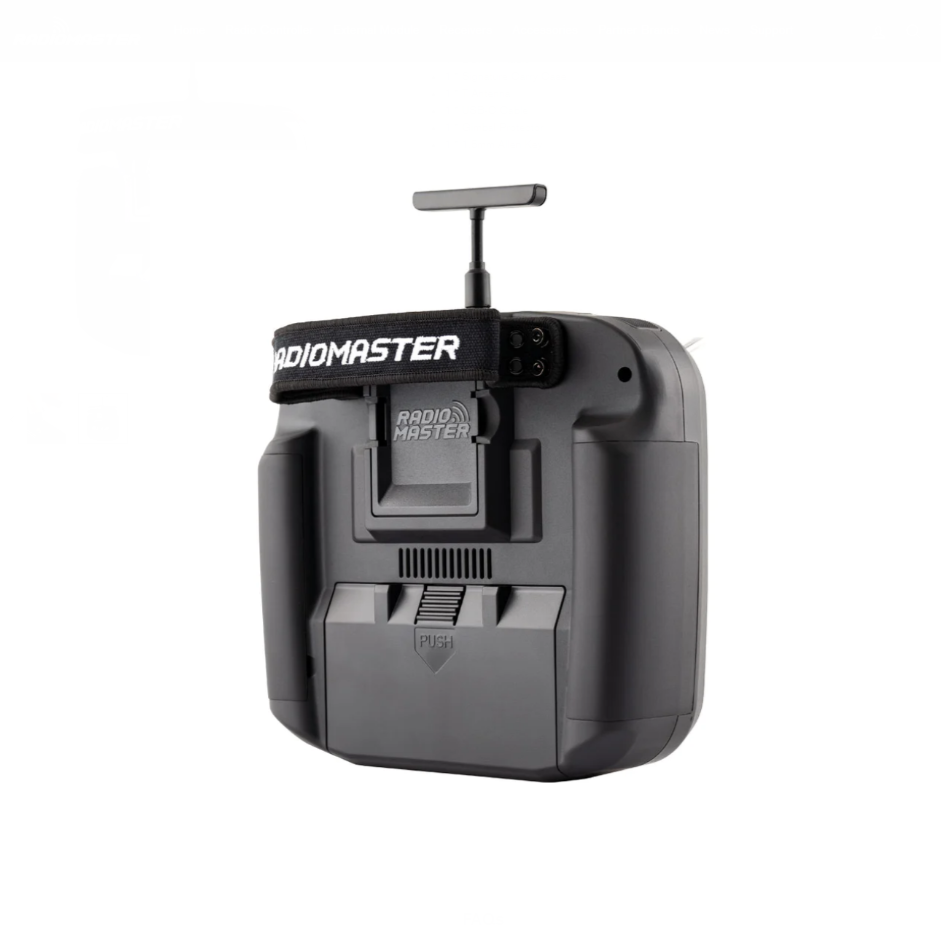

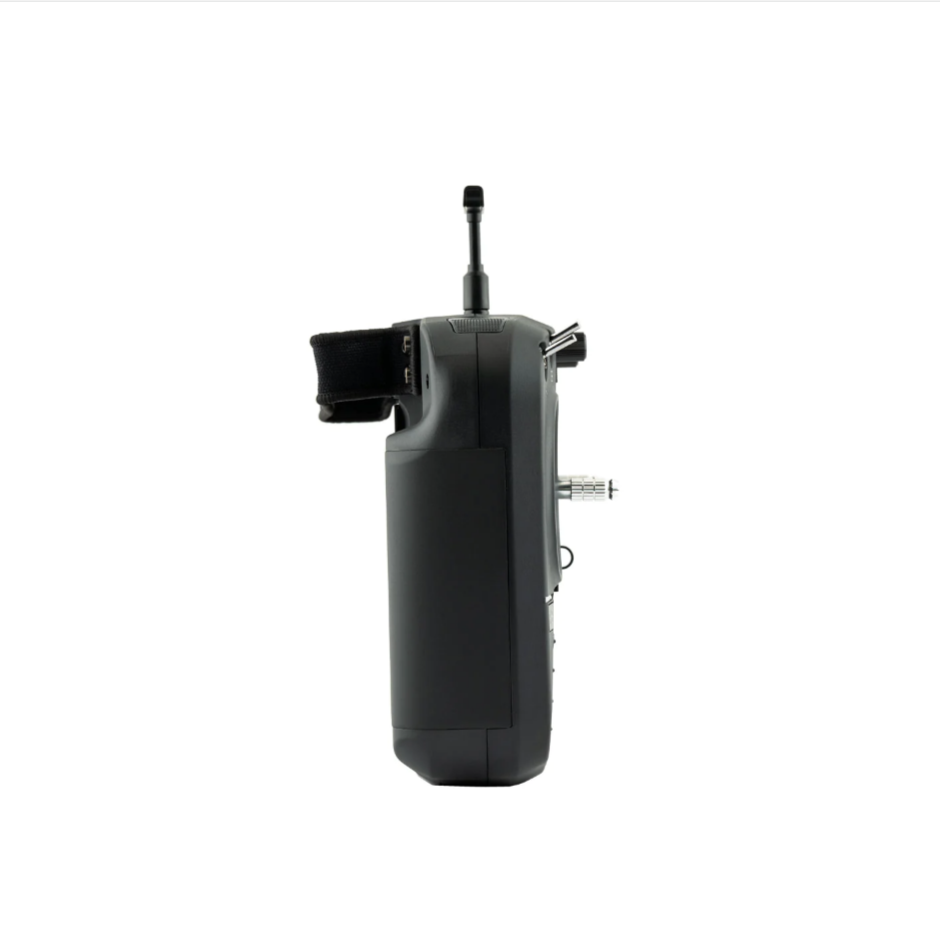

Industry-first fabric handle for improved portability

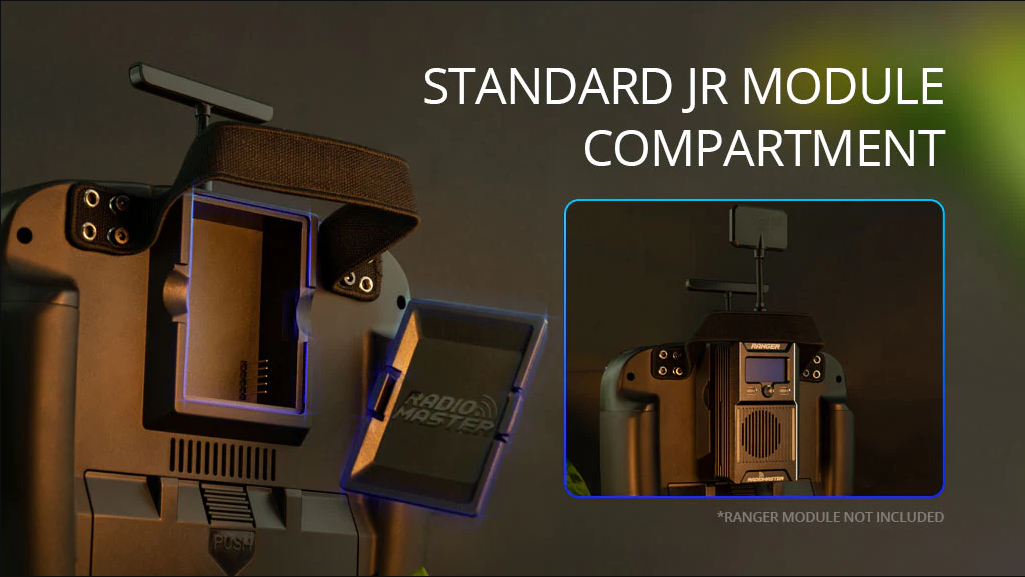

Standard JR module compartment Internal module
External Module Power Slots in Battery Cover

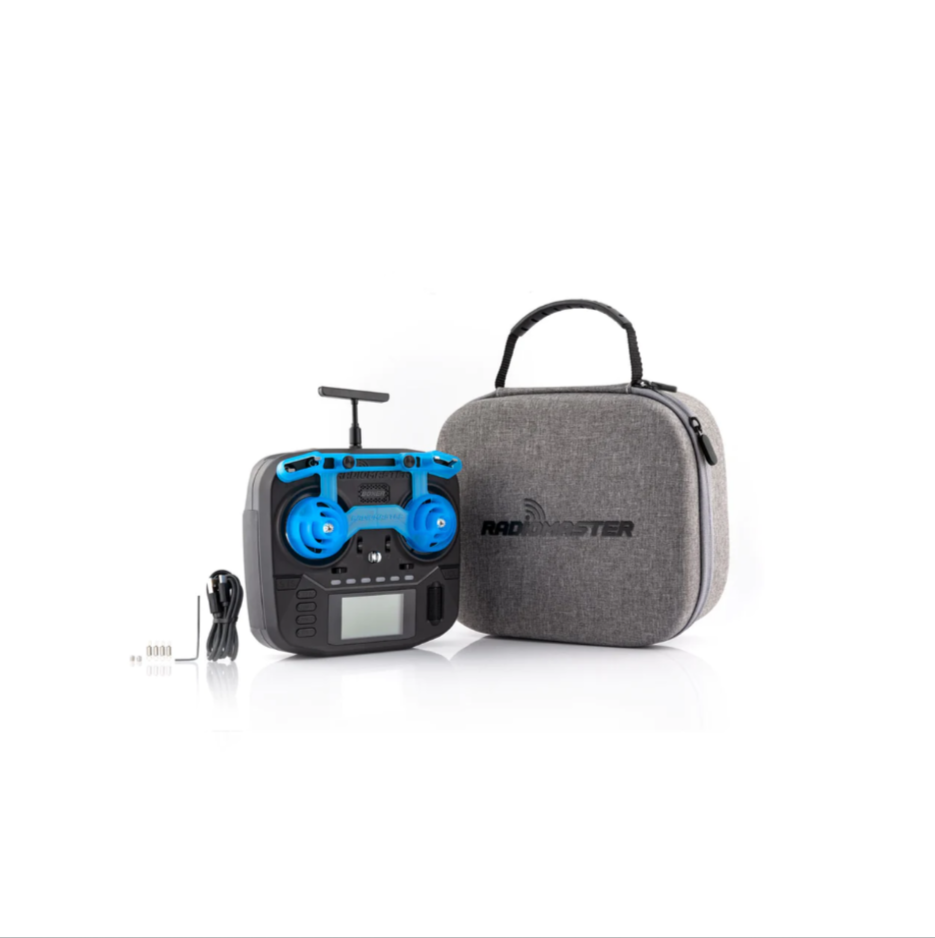

Signature RadioMaster Carrying Case
Supports External 2S Power Supply
Gimbal Protector for Safe Storage
Oversized Battery Compartment
Supports USB-C direct charging

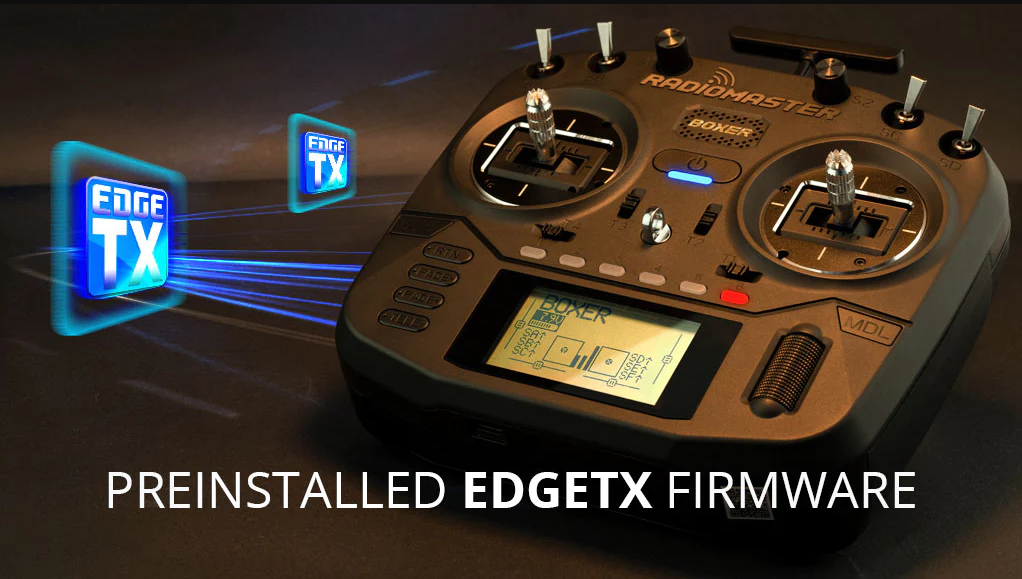

Pre-installed EDGETX Firmware

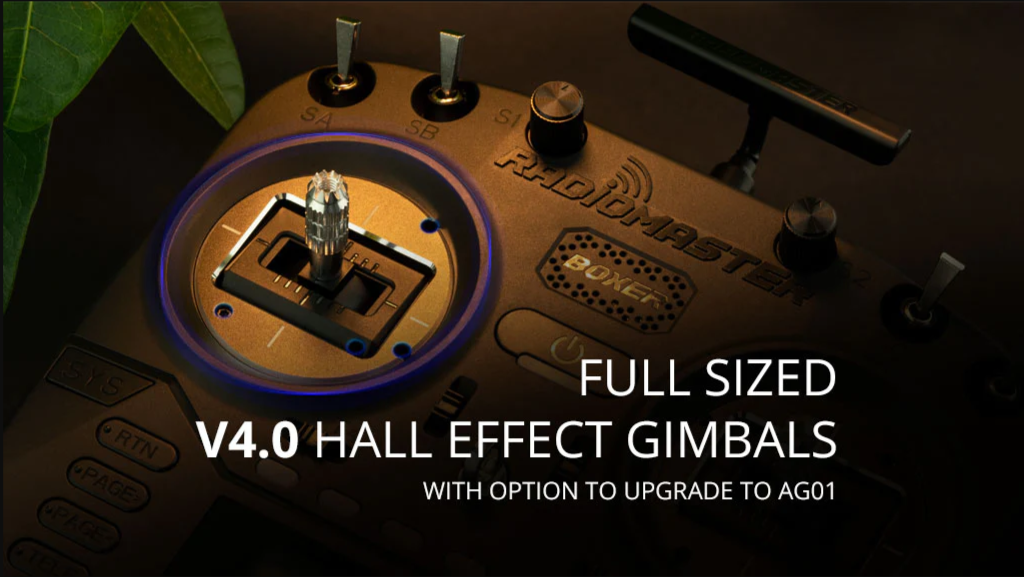

V4.0 Full-Size Hall Gimbals
White Gimbal LEDs
Supports 2.0A MAX
Ergonomic Design
Transparent Color
ELRS 2.4GHz
Specifications
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

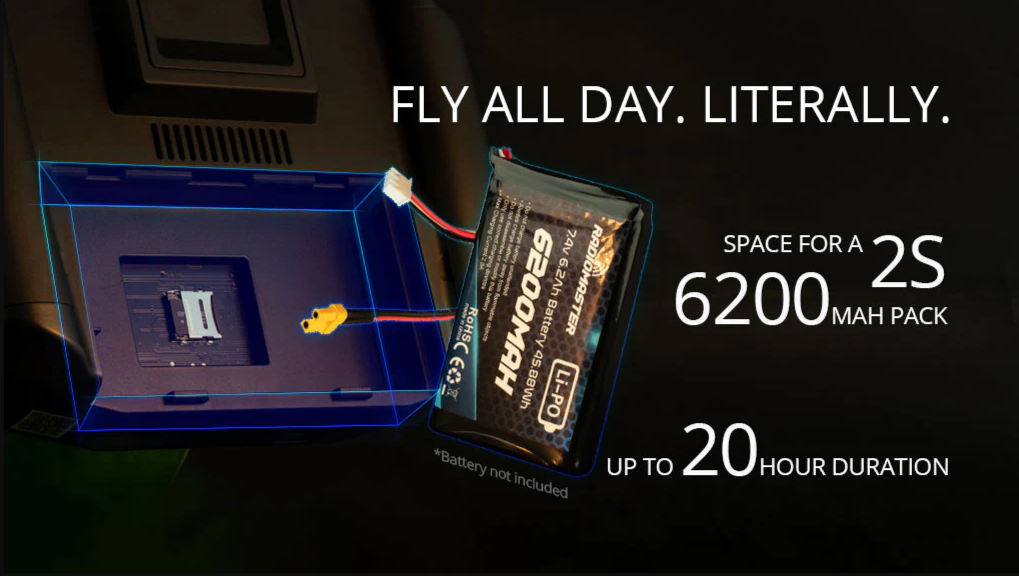

Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)

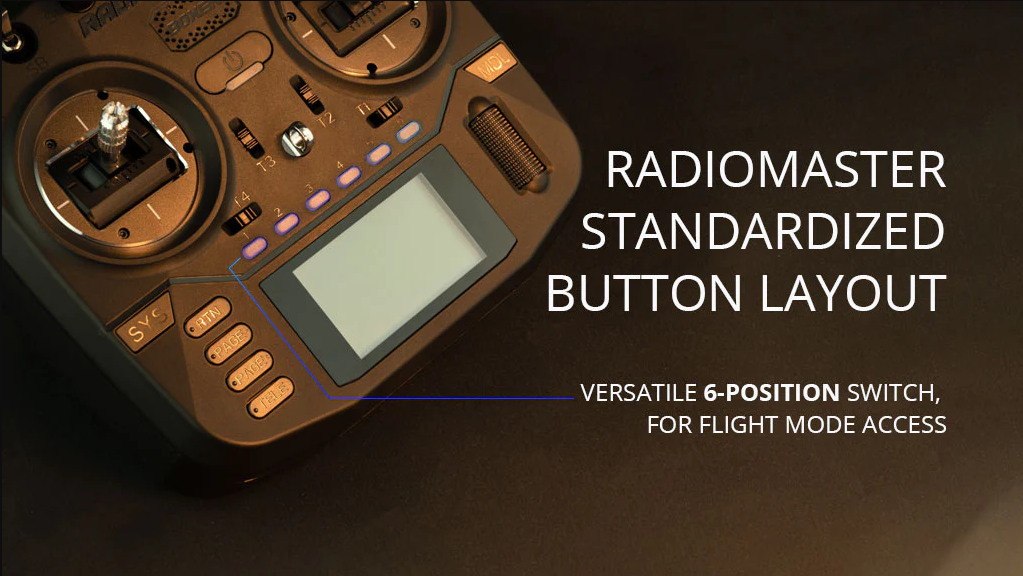

Standardized button layout: Versatile 6-position switch for flight mode access
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)
Upgrade Method: USB/SD card & EdgeTX Companion PC software
Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz
Channels: Max 16 channels (Receiver dependent)
Processor: STM32VGT6 processor with 1MB RAM
SD card: Slot with pre-loaded SD card included
External module: JR/FrSKY/Crossfire compatible
Module Power Slots: External in Battery Cover

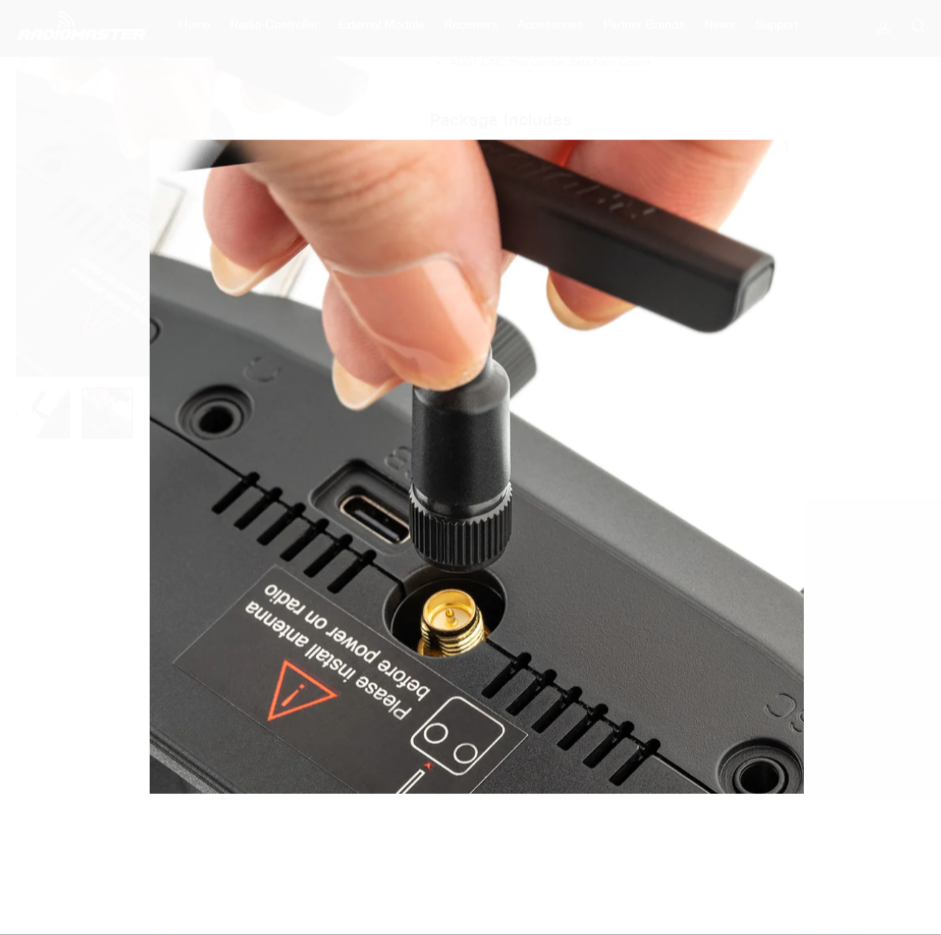

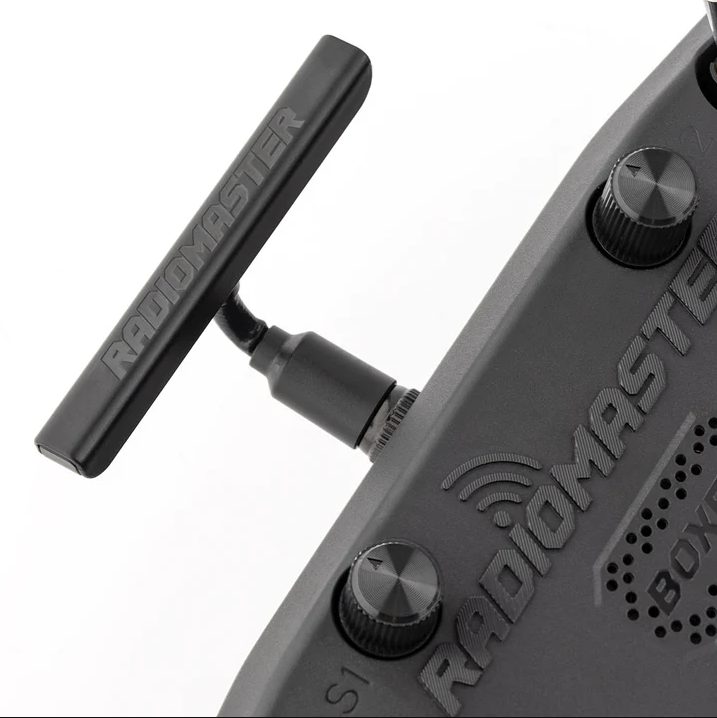

Antenna: Adjustable/Removable T-Antenna
Display: 128*64 Monochrome LCD display
Supported protocols: Module dependent
Cooling Fan: Built-in (ELRS Only)
Frequency: 2.400GHz-2.480GHz
Voltage Range: 6.6-8.4V DC
Model: Radiomaster Boxer
Fast Charging: QC3.0

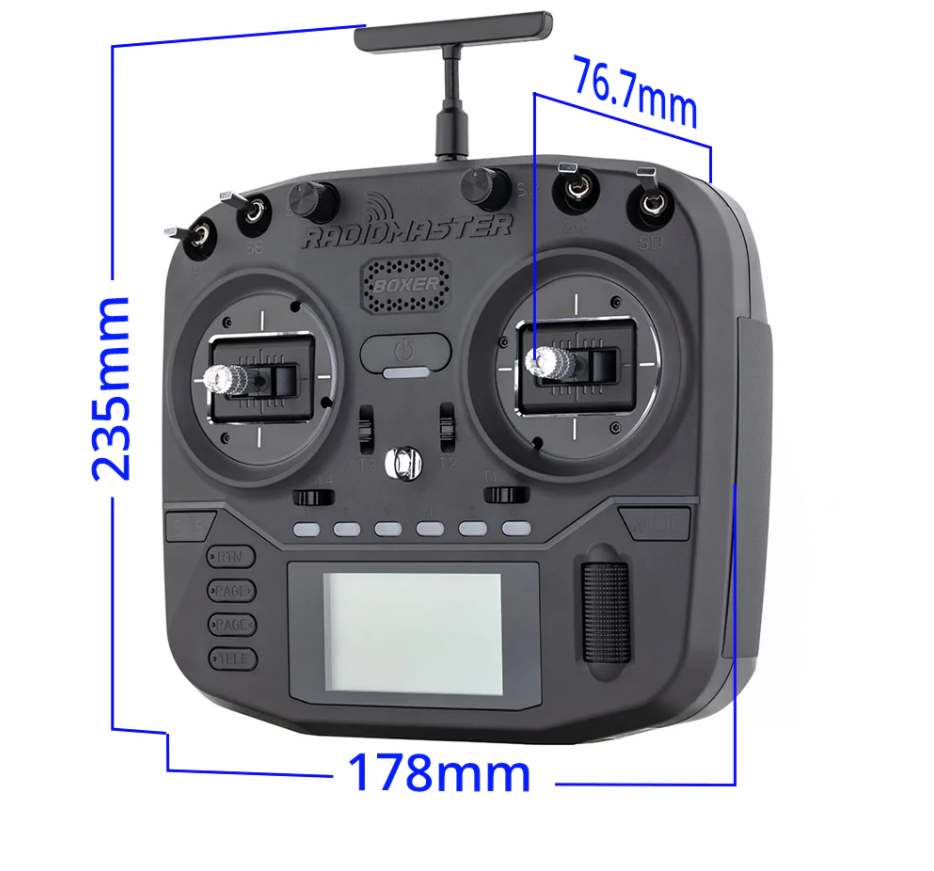

Size: 235*178*77mm
Gimbal LEDs: White
Color: Transparent
Weight: 532.5g
