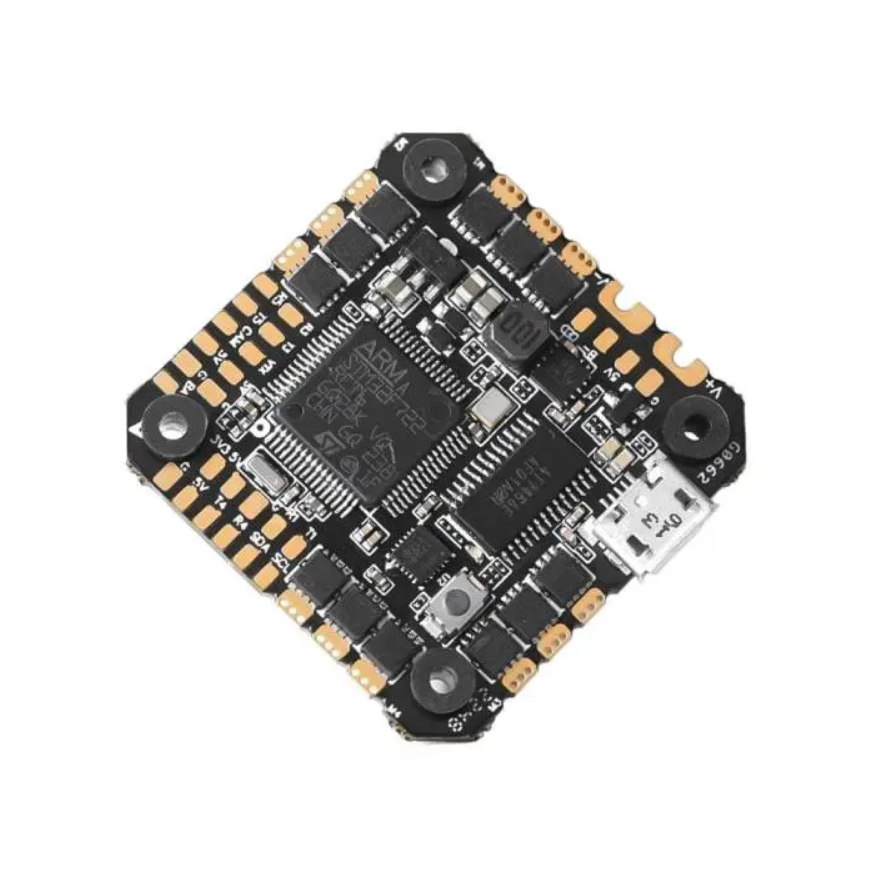

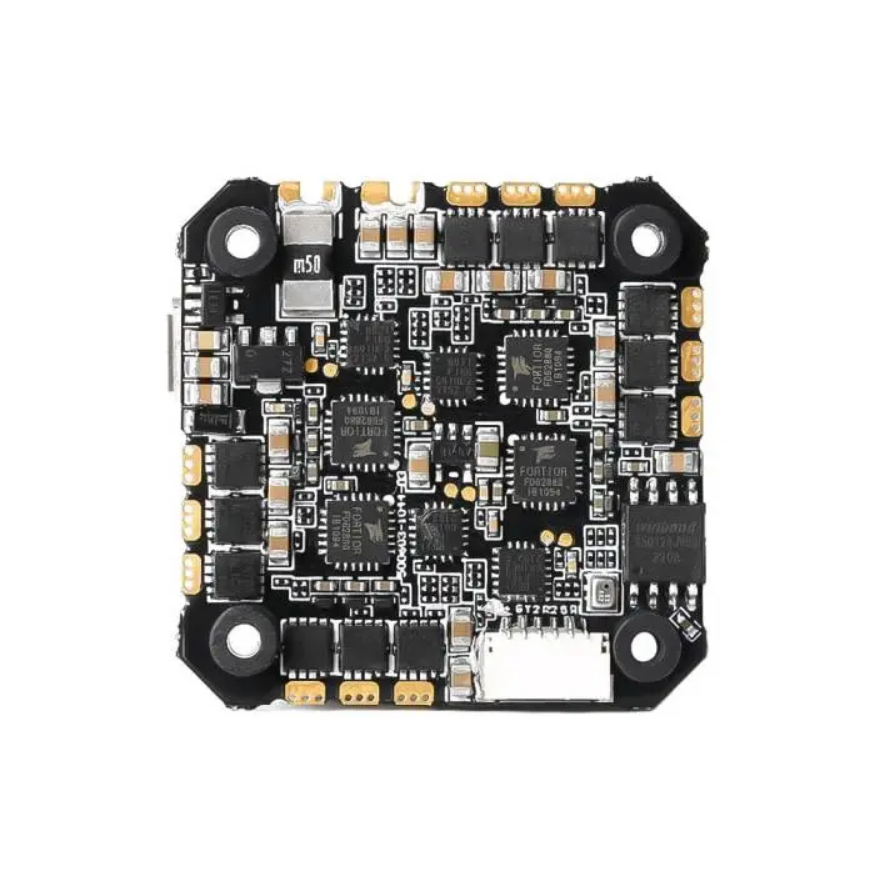

The T-Motor F7 AIO is a compact flight controller featuring advanced components such as an onboard ESC with Bluejay & BLHeli_S firmware, a quality MPU series gyroscope for improved noise reduction, 16MB Black Box space, and an integrated barometer. With support for both HD and Analog, this versatile controller offers a current of 35A/40A, a 5V/1.5A BEC, and an HD VTX socket, making it an ideal choice for high-performance drone builds.
Features
The onboard ESC works with Bluejay & BLHeli_S ESC firmware

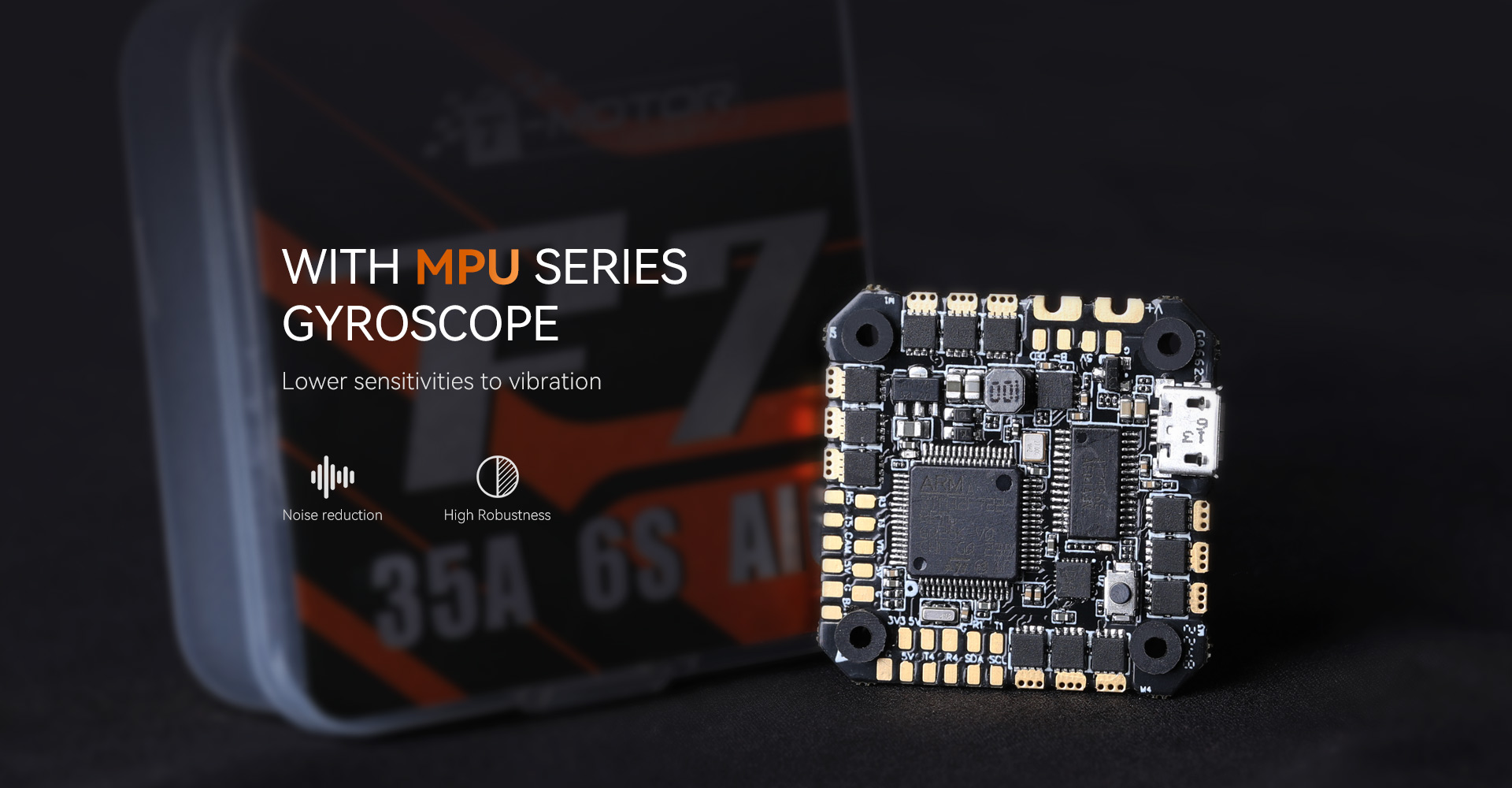

A quality MPU series gyroscope for better noise reduction
16MB of Black Box space
Supports HD and Analog
Integrated Barometer

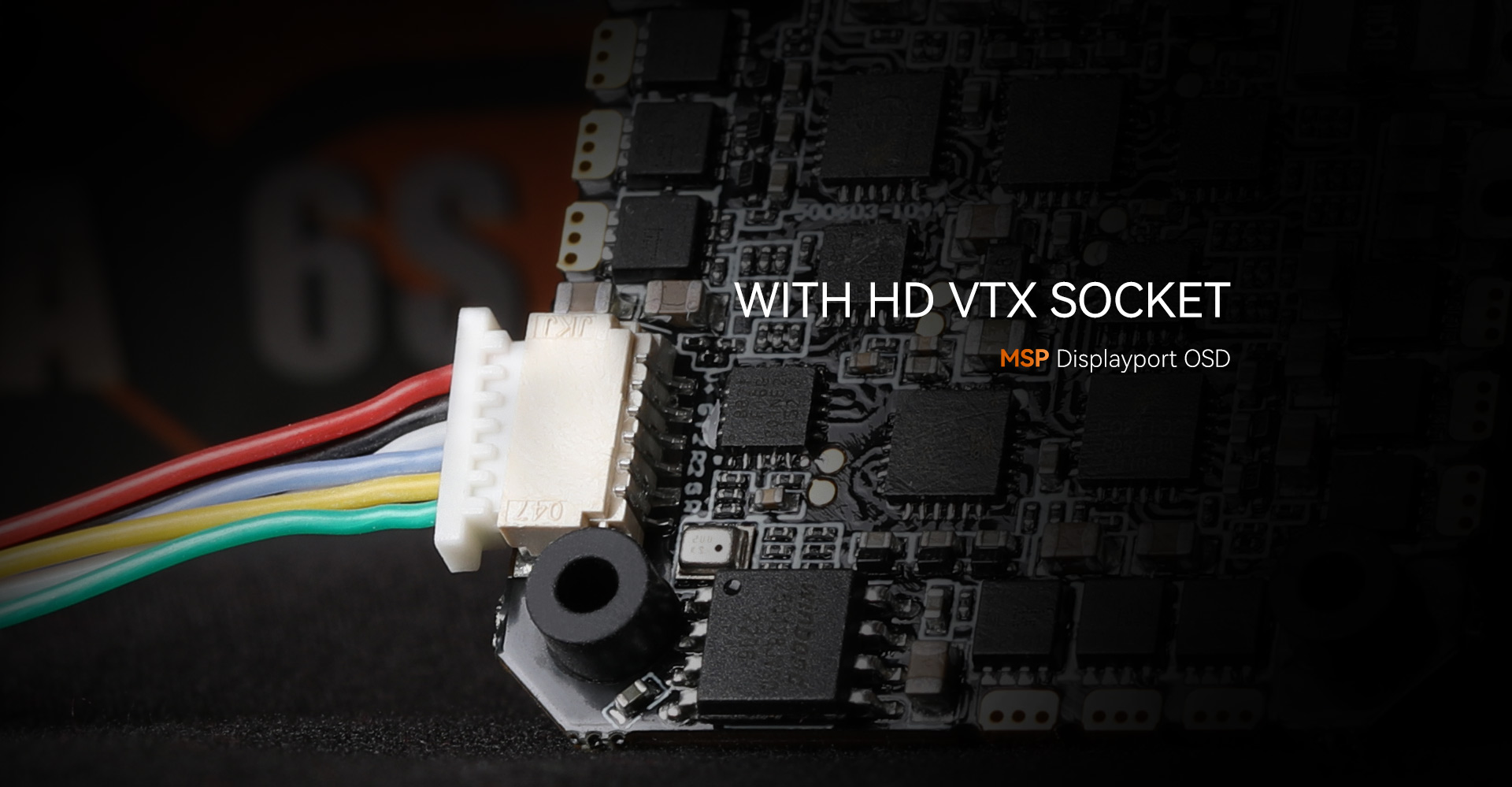

HD VTX Socket

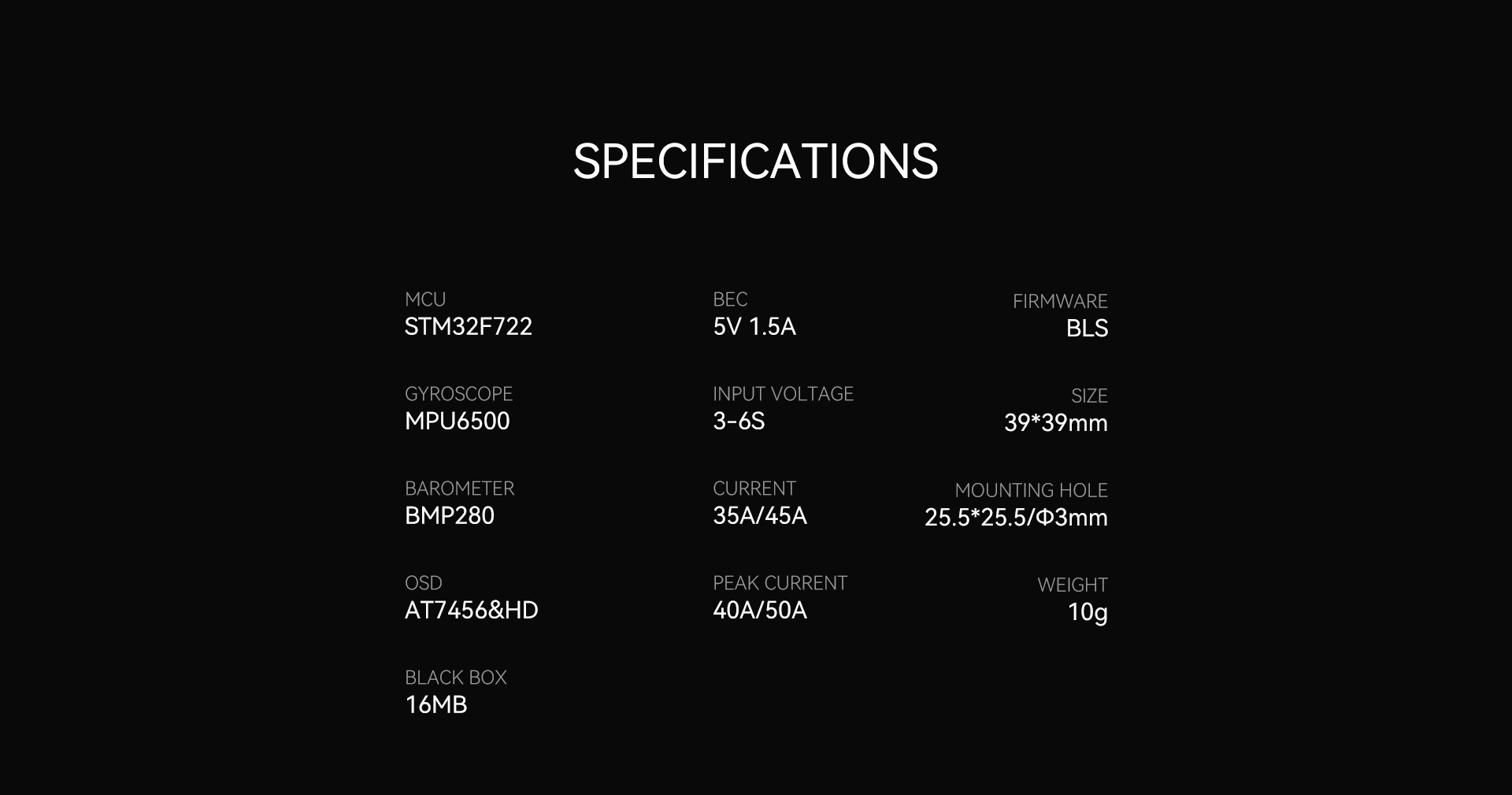

Specifications

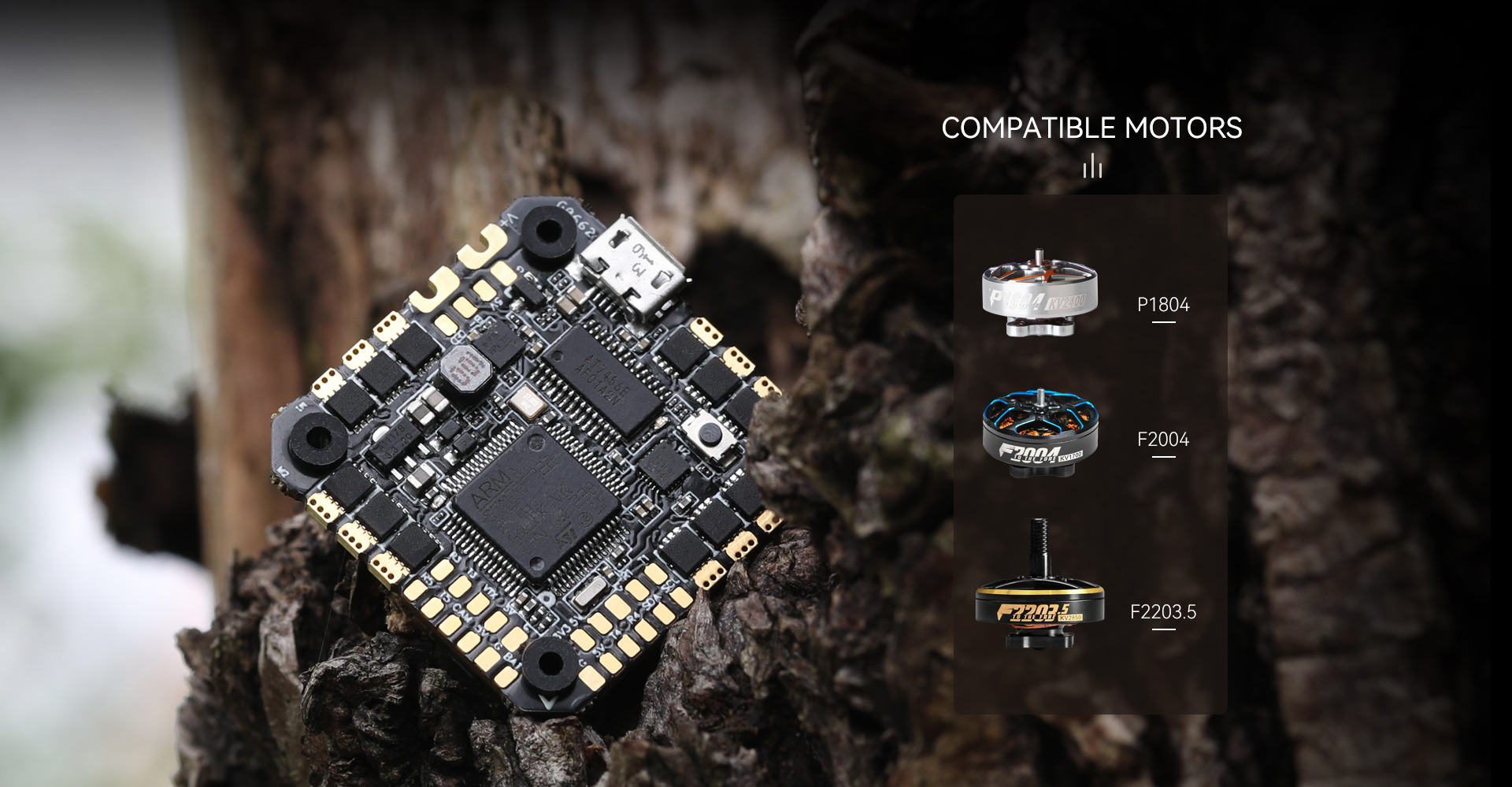

Recommendation: P1804/F2004/F2203.5
Mounting hole: 25.5×25.5/φ3mm
ESC firmware: BLS\Bluejay
Continuous current: 35A

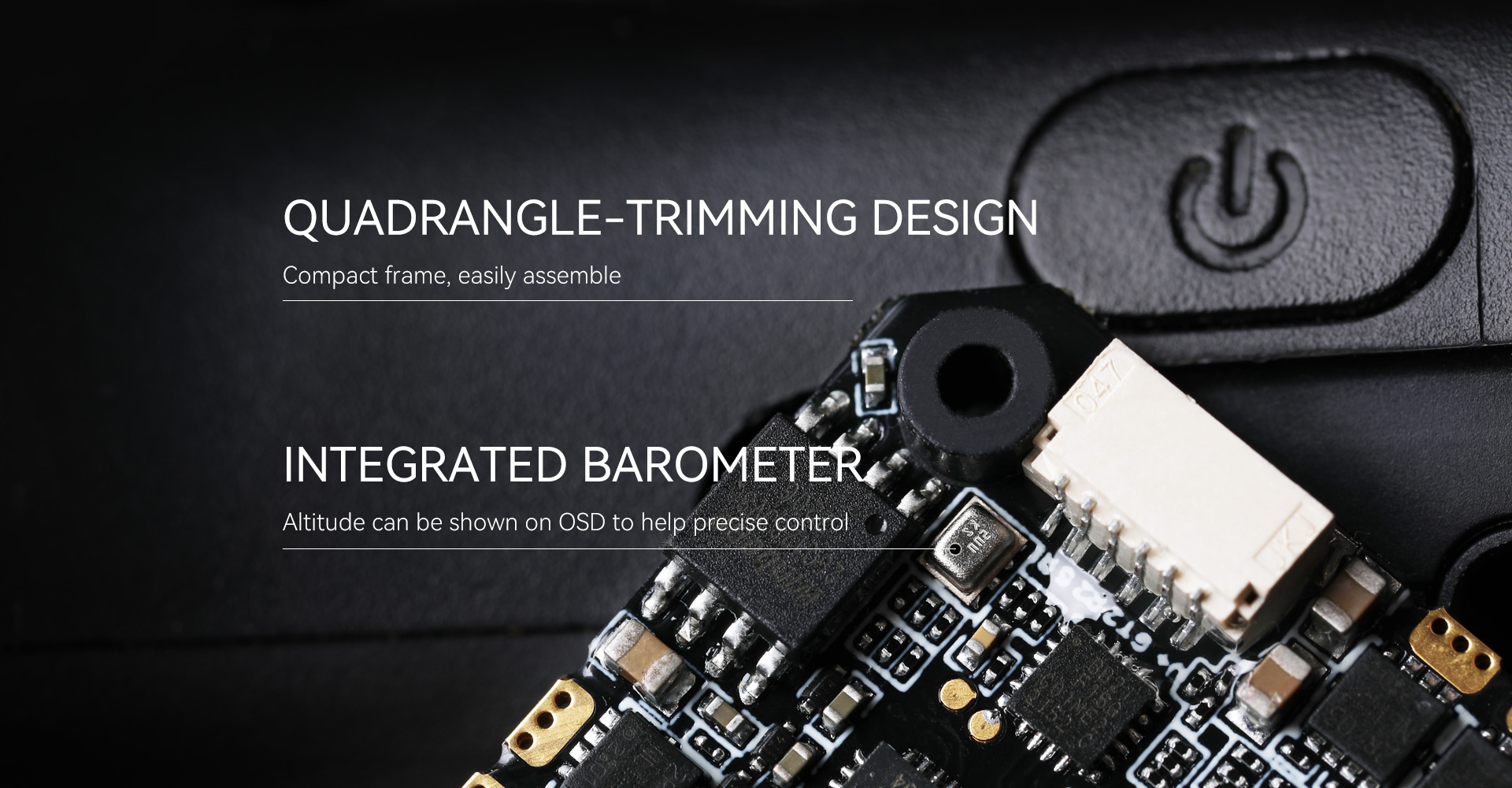

Barometer: BMP280
MCU: STM32F722
Input voltage: 3-6S
OSD: AT7456&HD
Peak current: 40A
Black box: 16MB
Gyro: MPU6500
Size: 39x39mm
BEC: 5V/1.5A
